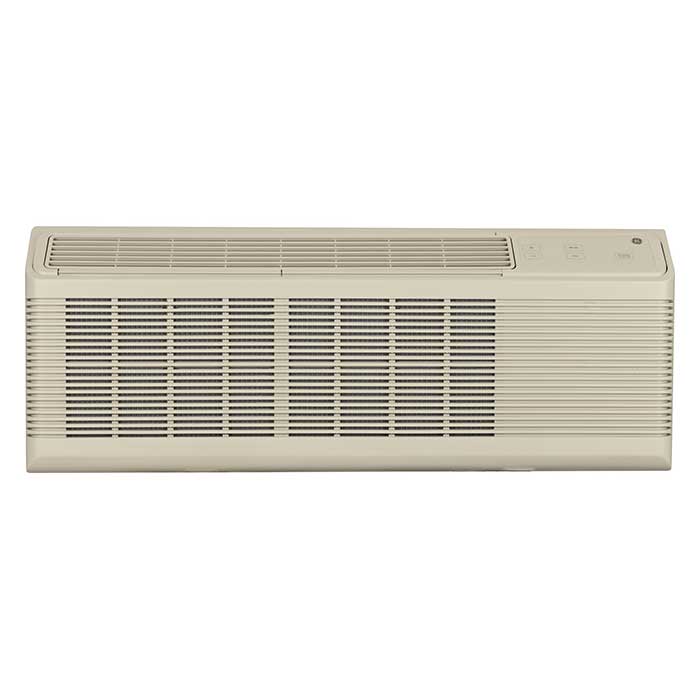

GE Zoneline PTAC, Heat Pump, 7K, 230V (Must Also Purchase 15,20 or 30A cord)
Item Code:
AC5408
Request a Quote
- Cooling capacity 7,100/6,900Â BTU
- Dehumidification 1.7Â pints/hour
- Reverse heat cycle 6,200/6,100 BTU
- Heat pump efficiency 4.0/4.0 COP
- Indoor fan CFM (high/low) 409/250
DETAILS
FEATURES |
|
| Sensible Heat Ratio | 79% |
| Chassis Type | Slide-In |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | "Sleep" Mode "Smart Fan" Fan Cycle Control 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat Heat Sentinel LCDI Power Cord Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components |
| Temperature Range | 60 - 85 F |
CAPACITY |
|
| Cooling BTUH (MIN) | 6900.0Â Btu |
| Cooling BTUH (MAX) | 7100.0Â Btu |
| Cooling EER (BTUH / Watt) | 13.0/13.0 |
| CFM Indoor Fan High | 360 |
| CFM Indoor Fan Low | 205 |
| Dehumidification (pts./hr.) | 1.7 |
| Heating - Reverse Cycle - BTUH | 6200/6100 |
| Vent CFM (high fan at zero ESP) | 38 |
WEIGHTS & DIMENSIONS |
|
| Approximate Shipping Weight | 110Â lb |
| Net Weight | 110Â lb |
| Overall Depth | 20 13/16 in |
| Overall Height | 16 in |
| Overall Width | 42Â in |
POWER / RATINGS |
|
| Cooling - Amperes; F.L. - Cooling | 2.5/2.7 |
| Cooling - Amperes; L.R. | 13.5 |
| Cooling - Watts | 545/530 |
| Heating - Reverse Cycle - Amps | 2.1/2.2 |
| Heating - Reverse Cycle - COP | 4.0/4.0 |
| Heating - Reverse Cycle - Watts | 450/440 |
| Power Factor | 96 |
| Voltage (MIN) | 208.0Â V |
| Voltage (MAX) | 230.0Â V |
CLAIMS & CERTIFICATIONS |
|
| California Prop 65 | |
WARRANTY |
|
|
Parts Warranty |
Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
