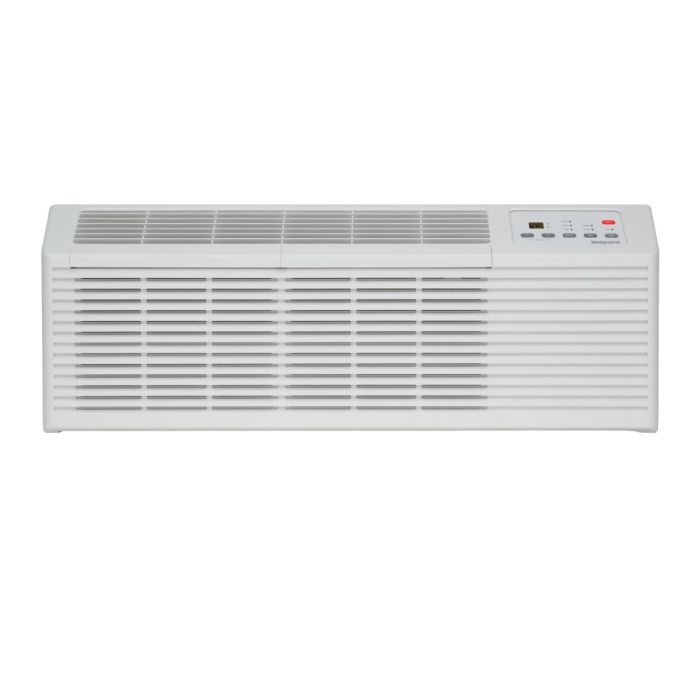

GE Hotpoint PTAC, Heat Pump, 9K, 230V, 20A
Item Code:
AC5235
Request a Quote
Hotpoint warranty is backed by GE Appliances nationwide
Dependable, robust PTAC unit at an incredibly affordable price
Smooth, quiet airflow will increase your guest satisfaction
Energy-efficient heat pump models available
Tangential fan for air flow and smooth sound
Heatpump models include staged heating
Remote thermostat compatibility
Works with central desk control systems
Estimated Dimensions: 16 H x 42.40 W x 20.90 D
AHHS09D3XXA
DETAILS
FEATURES |
|
| Control Type | Electronic |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Temperature Range | 62 - 80 F |
| Fan Speed Selections | 3 Cooling, 3 Fan Only, 3 Heating |
| Unit Features | Auto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Power Cord (LCDI) included, Remote Thermostat Compatibility |
| Auto Power Recovery | Yes |
| Chassis Type | Slide-In |
| Heat - Cool | Yes |
| Heat Pump | Yes |
| Heating - Reverse Cycle - COP | 3.6 |
| Manual Vent Control | Hidden |
| Outdoor Vent / Exhaust | Yes |
| Rotary Compressor | Yes |
| Venting Features | Concealed Manual Vent Control, Vent Air Filter |
| "SmartFan" Fan Cycle | Yes |
| Discharge Grille | 2-position |
| Fan Motor | 2 |
| Heating System | Heat Pump with Resistance Backup |
CAPACITY |
|
| CFM Indoor Fan High | 335 |
| Cooling EER (BTUH / Watt) | 11.9 |
| Heating - Reverse Cycle - BTUH | 6000/5800 |
| CFM Indoor Fan Low | 240 |
| CFM Indoor Fan Medium | 281 |
| Cooling BTUH (MAX) | 7200.0 Btu |
| Cooling BTUH (MIN) | 6800.0 Btu |
APPEARANCE |
|
| Installation | Through-the-Wall |
| Color Appearance | White |
WEIGHTS & DIMENSIONS |
|
| Overall Depth | 20 9/10 in |
| Overall Height | 16 in |
| Overall Width | 42 2/5 in |
| Approximate Shipping Weight | 115 1/2 lb |
| Net Weight | 104 7/10 lb |
POWER / RATINGS |
|
| Heating - Electric - Heater Watts | 3535/2900 |
| Heating - Electric - Heater Amps | 15.3/13.7 |
| Heating - Reverse Cycle - Amps | 2.22/2.38 |
| Heating - Reverse Cycle - Watts | 515/500 |
| Cooling - Amperes; F.L. - Cooling | 2.7/2.8 |
| Cooling - Watts | 605/570 |
| Cooling - Amperes | 2.4/2.6 |
| Voltage (MAX) | 230.0 V |
| Voltage (MIN) | 208.0 V |
