Overall Height: 15 5/8 in
Overall Width: 26 in
Overall Depth: 21 13/16 in

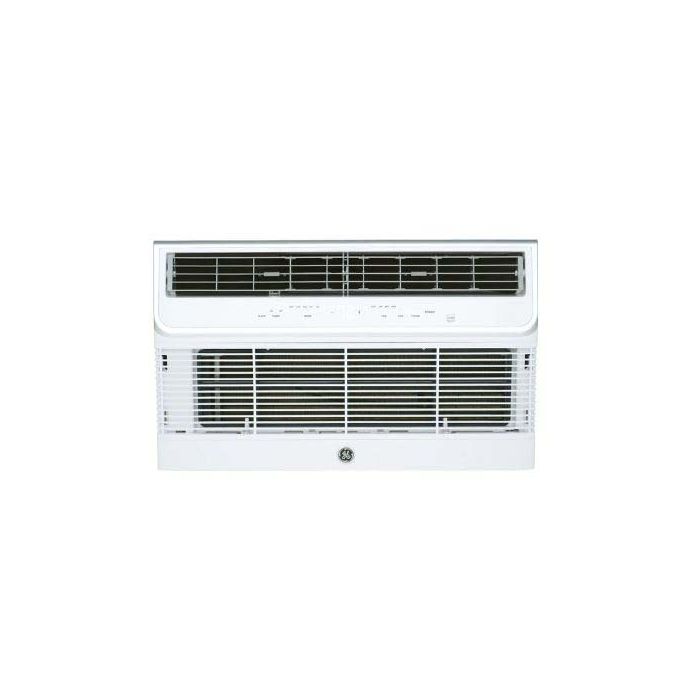

GE 26" TTW AC Unit, Heating/Cooling, 230/208V, 12000 BTU
Item Code:
AC5304
Request a Quote
Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance
Controls offer a high-end and smooth to-the-touch panel
A slim room front provides more usable space in the room. It’s the sleekest design in the industry
Built-in WiFi powered by SmartHQ™
Premium Guard Seacoast Protection
Electronic Cap Touch Controls
ECO Mode
Dimensions: 15 5/8 H x 26 W x 21 13/16 D
AJEQ12DWJ
DETAILS
Built-In Air Conditioner
+ DIMENSIONS
+ ACCESSORIES
Wall Case: RAB46/47/48/26 Required At Additional Cost
+ APPEARANCE
Color Appearance: Soft Gray
Installation: Wall Mounted
+ CAPACITY
Cooling BTUH (MAX): 12,000 Btu
Cooling BTUH (MIN): 11,700 Btu
Dehumidification (pts./hr.): 3.4/3.4
Heating - Electric - BTUH: 10,600/8,600
+ FEATURES
Air Discharge: Over / Under
Airflow (cfm) Roomside (hi/low): 285/245, 275/235
Chassis Type: Slide-In
Connected Capabilities: Amazon Alexa, Google Home
Control Type: Electronic
Cord Length: 68"
Fan Speed Selections: 3 Cooling, 3 Fan Only
Filter Type: Rigid Frame, Tilt-Out, Washable
Heating - Electric - Input Watts: 3450/2821
Hertz: 60
Louver Style: 6-Way
Optional Grill: RAG13/RAG13A/RAG14E
Outdoor Vent / Exhaust: Yes
Plug Type: Perpendicular/Right Angle LCDI
Product Type: Built-In
Refrigerant Type: R32
Remote Control: Yes
Room Air Conditioner Features: Smart Fan Switch, Remote Control, Batteries Included, Improved Corrosion Package
Rotary Compressor: Yes
Style: Thru-Wall
Temperature Range: 60 - 85 F
Thermostat Type: Electronic Digital
Unit Type: Heat / Cool Unit
WiFi Connect: Built-In
+ POWER / RATINGS
CEER: 9.5/9.5
Heating - Electric - Heater Amps: 15.0/13.5
Voltage (MAX): 230 V
Voltage (MIN): 208 V
Voltage/Hertz/Phase: 230-208/60/1
Volts/Hertz: 230V-208V/60Hz
+ WARRANTY
Labor Warranty: Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
Parts Warranty: Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
Warranty Notes: See written warranty for full details
+ WEIGHTS & DIMENSIONS
Approximate Shipping Weight: 90.5 lb
Depth to Louvers: 5 in
Net Weight: 90.5 lb
Overall Depth (Excludes Sleeve): 19 29/32 in
Overall Height (Excludes Sleeve): 14 7/8 in
Overall Width (Excludes Sleeve): 24 13/16 in
