Amana, PB Model Sleeve & Grille, for 26" Wall
Item Code:
AC6940
Request a Quote
For all new 26 in. PBC/PBE/PBH through the wall installations
Weatherboard included for new construction applications
Requires rough opening of 26-3/16 in. W x 15-13/16 in. H
Stonewood beige cabinet with mill finish aluminum grille
Compatible with Vertex 26" TTW Units
DETAILS

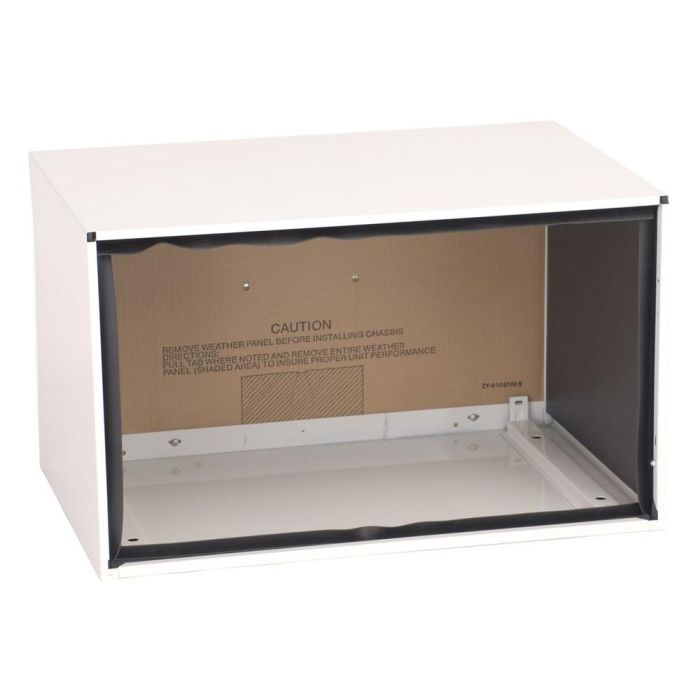

The PBWS01A is a solid-side, heavily insulated metal sleeve. It includes a stamped aluminum exterior grille with a weather-seal rear enclosure for installation without the chassis. The sleeve has a solid bottom for complete weather-tight installation. Painted aluminum sleeve for 26" TTW unit with stamped aluminum exterior louver (Required for new installations)
Actual Sleeve Dimensions:
Height: 15 5/8"
Width: 26"
Depth: 16 7/8"
Depth w/ Chassis Installed: 21 7/8"
Sleeve Cutout Dimensions
Height: 15 13/16"
Width: 26 3/16"
Maximum Wall Thickness: 16 3/8"
Actual Sleeve Dimensions:
Height: 15 5/8"
Width: 26"
Depth: 16 7/8"
Depth w/ Chassis Installed: 21 7/8"
Sleeve Cutout Dimensions
Height: 15 13/16"
Width: 26 3/16"
Maximum Wall Thickness: 16 3/8"
